GASKET CHARACTERISTICS ACCORDING TO EN 13555

The EN 13555 standard defines the characteristic values and measurement methods for flanges and their joints.

To determine the gasket characteristics, compression tests, leakage tests, creep tests, creep/relaxation tests are carried out on a test bench.

These test reports can be found as PDF documents for the gaskets listed below.

The list will be completed bit by bit.

Explanation of the measured values Qmin(L) and Qsmin(L) measured according to DIN EN 13555

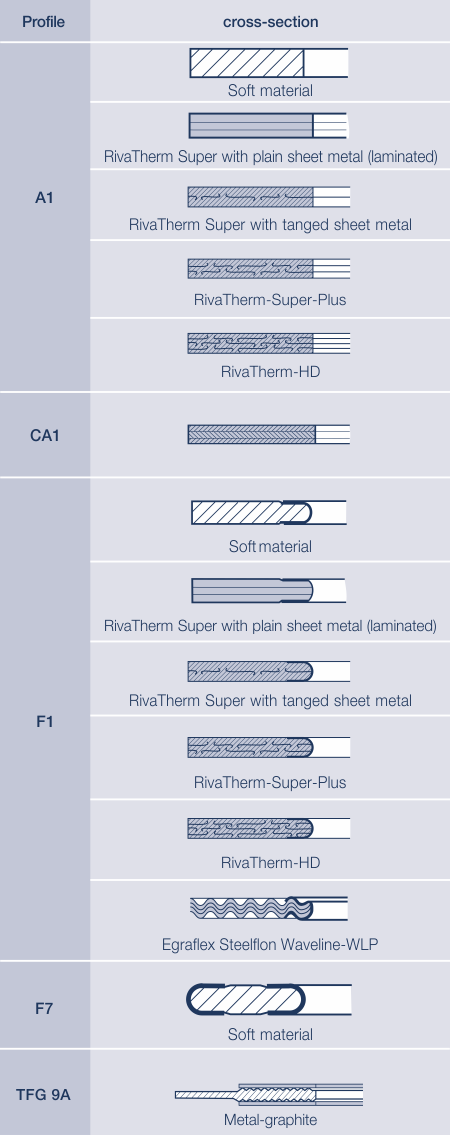

ProfileGasketMaterial
A1RSP2S2075iGraphite/1.4401
A1RS2K110-AGraphite/1.4401
A1RS2S110IGraphite/1.4401
A1RHD2S3075iGraphite/1.4401
A1RS2E2-S_DIN1514Graphite/1.4401
A1Klingersil-C4400Fasermaterial
F1RS2K110-AGraphite/1.4401
F1RSP2S2075-iGraphite/1.4401
F1RHD2S3075iGraphite/1.4401
F1RS2S110-IGraphite/1.4401
F1Klingersil-C4400Fasermaterial/1.4401
F1WLP-Waveline_DIN1514Ergaflex-Steelflon
TFG9ATFG9A-Graphit_DIN1514Graphite/1.4541
ProfilGasketMaterial
B9AB9A-GR-GR_DIN1514Graphite/1.4541
B9AB9A-GR 2.4610 DIN1514-6Graphite/2.4610
B9AB9A-PTFE-ug_DIN1514PTFE/1.4541
B9AB9A-MF_DIN1514MF/1.4541
B9AB9A-Gylon_DIN1514Gylon/1.4571
B29AB29A-GR_DIN1514Graphite/1.4541
B29AB29A-PTFE-ug_DIN1514PTFE/1.4541
B29AB29A-AG_DIN1514Ag(Silber)/1.4541
B29AB29A-GR-WN101Graphite/1.4541
TFG9ATFG9A-GR_DIN1514Graphite/1.4541
ProfileGasketMaterial
W1A-3W1A-3-GR_DIN1514Graphite/1.4541
W1A-3W1A-3-TF_DIN1514PTFE/1.4541
W1A-3 F1W1A-3 F1 GR08 DIN1514Graphite/1.4541
W1AW1A-GR_DIN1514Graphite/1.4541
ProfileGasketMaterial
SpV2ISpV2I-GR_WN104Graphite/1.4541
SpV2ISpV2I-GR_DIN1514Graphite/1.4541
SpV2ISpV2I-PTFE_DIN1514PTFE/1.4541
SpFS2ISpFS2I-PTFE-GR_DIN1514Graphite/PTFE/1.4541
SpV2I-HTSpV2I-HT-Glimmer-Ag_WN104Glimmer/Ag
ProfileGasketMaterial
PW1PW1-14541-TFM_DIN1514TFM/1.4541
PW5PW5-14541-PTFE_DIN1514PTFE/1.4541
PW5PW5-14541-C4400-TFM1600_DIN1514TFM/1.4541
PW5EPW5-Email DIN 15141.4571/SGL-Email/TFM 1600
PW21PW21-14541-TFM_DIN1514TFM/1.4541
PW21PW21-14541-PTFE_DIN1514PTFE/1.4541
PW21PW21-37025-PTFE_DIN1514PTFE/3.7025(Titan)
PW21PW21-1.4541-PTFE_leitfähig DIN1514PTFE/leitfähig
PF29PF29_DIN15141.4541/PTFE

ProfileGasketMaterial
WGWG-EPDM_DIN1514EPDM
WLWL-EPDM_DIN1514EPDM
WGWG-NBR_DIN1514NBR
